IBR Strip roof Short span roofing sheet Full-automatic roofing sheets machine price

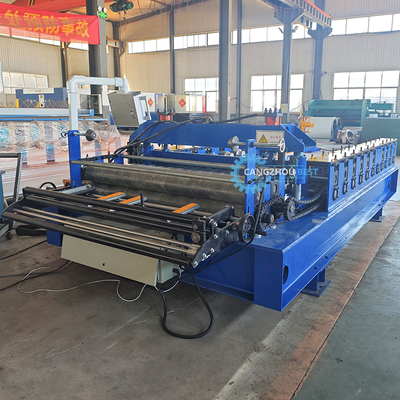

Großes Bild : IBR Strip roof Short span roofing sheet Full-automatic roofing sheets machine price

Produktdetails:

Place of Origin:	China
Markenname:	BEST
Zertifizierung:	ISQ/CE
Model Number:	XY-1041

Zahlung und Versand AGB:

Minimum Order Quantity:	1
Preis:	USD 6500-13000/SET
Packaging Details:	Main machine naked and fastened with wire rope in the container.All electrics devices be packed with plastic film.
Delivery Time:	35 days
Payment Terms:	L/C,T/T
Supply Ability:	15 sets/ month

Kontakt

IBR Strip roof Short span roofing sheet Full-automatic roofing sheets machine price

Beschreibung

Name:	Double Layer Roof Tile Roll Forming Machine Trapezoidal tile roof board wall board double layer machine	Material of roller:	45# steel polished and coated with chrome
Material of shaft:	45# steel polished and coated with chrome	Diameter of shaft:	70 mm
Frame panel thickness:	20 mm	Bottom frame:	350 H-section steel
Motor Power:	3kw	Raw material:	0.3-0.8 mm
Hervorheben:	IBR strip roofing sheet machine , short span roofing sheet machine , double layer roll forming machine

Double Layer Roof Tile Roll Forming Machine

Attribute	Value
Name	Double Layer Roof Tile Roll Forming Machine Trapezoidal tile roof board wall board double layer machine
Material of roller	45# steel polished and coated with chrome
Material of shaft	45# steel polished and coated with chrome
Diameter of shaft	70 mm
Frame panel thickness	20 mm
Bottom frame	350 H-section steel
Motor Power	3kw
Raw material	0.3-0.8 mm

Product Description

Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof and wall sheets are new building materials with various thicknesses and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, and exhibition centers.

Working Flow

Decoiler → Feeding → Roll forming → Cut to length → Output table

Main Technical Parameters

1. DECOILER

Max. Width: 1250 mm
Inner Diameter: Φ450 - Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

2. ROLL FORMING MACHINE

Material Thickness: 0.2-0.8mm PPGI and GI
NO. of roller Stations: 16 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness: 20mm
Bottom frame: 350 H-section steel
Motor Power: 3kw
Driven type: 1＂Chain
Speed: 8-12m/min

3. CUT-OFF DEVICE

Material for Cut-Off Modular: Cr12 steel after treatment
Hardness for Heat Treatment: HRC55 - 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

4. PLC CONTROL BOX

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Voltage: 380v/50HZ, 3Phase

Working Conditions

1. Working size: 22m x 2m x 4m

2. Power supply: 6kw

3. Frequency: 50-60HZ

4. Wires/cables: 4-6mm² (length according to workshop)

5. Labor cost: 2 workers

6. Tools: Spanners and screwdriver

7. Lift device: 3-5t forklift or crane

Installation and Training

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory, please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.

Our Factory

Cangzhou Best Machinery Manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine. Our professional engineer engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept.

We Specialized in the production of:
