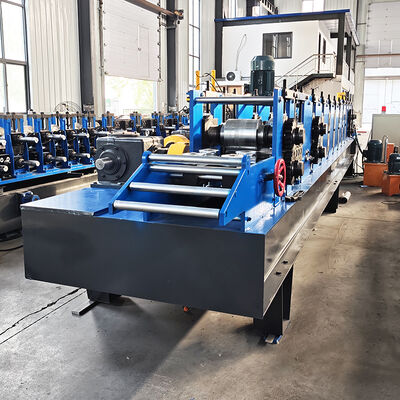

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box

Großes Bild : 6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box

Produktdetails:

Herkunftsort:	VIVIA N
Markenname:	BEST
Zertifizierung:	CE

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	USD24000--30000
Lieferzeit:	50 Arbeitstage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	20 Sätze/Monat

Kontakt

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box

Beschreibung

Stromspannung:	380V 50Hz 3Phasen	Verwenden:	C&Z
Kontrollsystem:	SPS (importierte Marke)	Rollenmaterial:	CR12
Name:	6 mm dickes, verzinktes L-förmiges Rollformmaschinengetriebe	Farbe:	Blau oder entsprechend dem Bedarf des Kunden
Hervorheben:	6mm galvanized L shape roll forming machine , L shape roll forming machine gear box , purlin roll forming machine with gear box

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Technical parameters:

Raw material
material spec	sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet	3-6mm
Machine details
roller material	High grade Gcr14 forged steel with 0.05mm hard chrome plating
shaft material	High grade NO. 45 carbon wrought steel
cutting blade	Cr12 mould steel with quenched treatment
diameter of shaft	1000mm
forming steps	10 rows
productivity	8m/min
hydraulic station power	22 KW
hydraulic pressure	10-12MPa
controlling system	famous PLC computer control
material of cutting table	Cr 12 mould steel with quenched treatment
appearance size	7500mm1150mm1510mm
hydraulic oil	40# hydraulic oil
Electric tension	380V 50 Hz 3 Phase or as your requirements

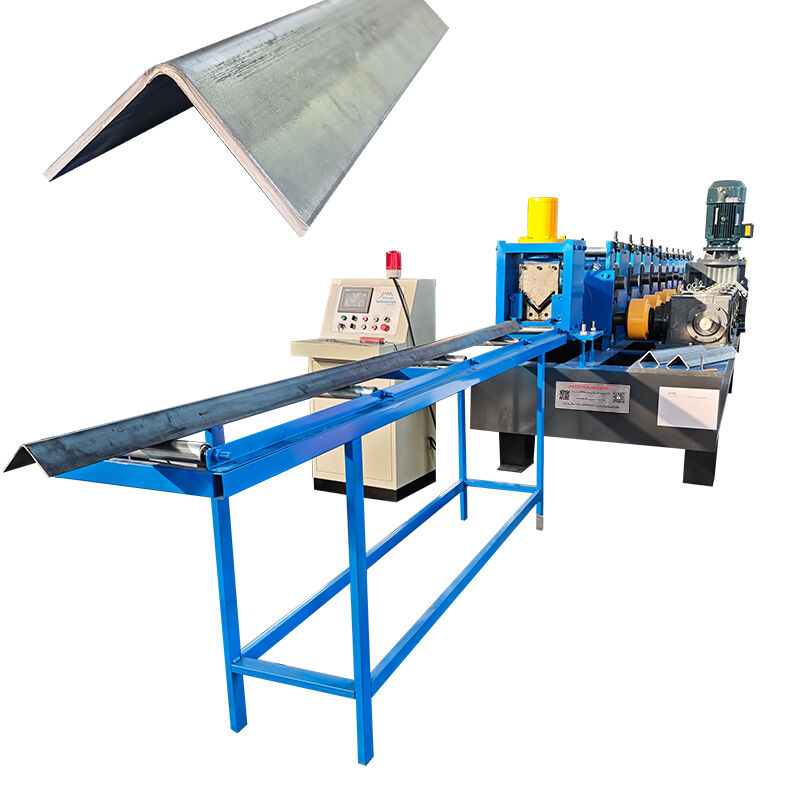

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box 1

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Device Configuration

No		number
(1)	Manual decoiler	1 set
(2)	Guiding device	1 set
(3)	Main roll forming machine	1 set
(4)	Hydraulic cutting device	1 set
(5)	PLC electric control system	1 set
(6)	Hydraulic driving system	1 set
(7)	Special tools and parts	1 set

Characteristic

Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
The main components will stable performance, good reputation, global procurement.
Using a number of control technology, automation degree is high.
Encoder count, length accurately.

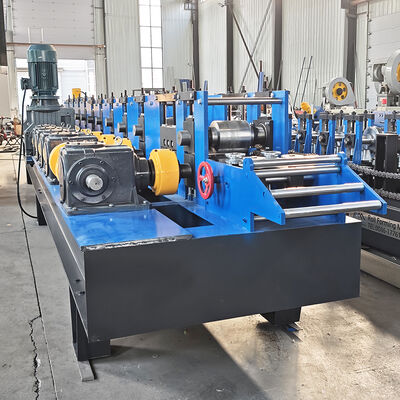

3. Machine picture

4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging andother necessary things.

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box Our Machine Advantage

1. Good quality: We have a professional designer and experienced engineer team.And the raw material and accessories we use are good.

2. Good service: we provide the technical support for whole life of our machines.

3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4. Easy operation:All machine cotrolled by PLC computer controlling systerm.

5. Elegant apperance:Protect the machine from rust and the painted colour can be customized

6. Reasonable price:We offer the best price in our industry.

6. FAQ

1. Q: Are you manufacturer or trading company?
A: We are manufacture
2. Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3. Q: what is the MOQ?
A: One set
4. Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional

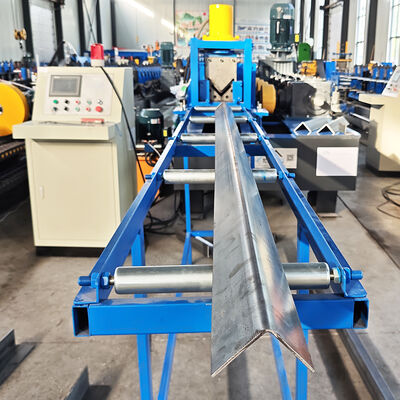

6mm Thickness Galvanized L Shape Roll Forming Machine Gear Box 2
