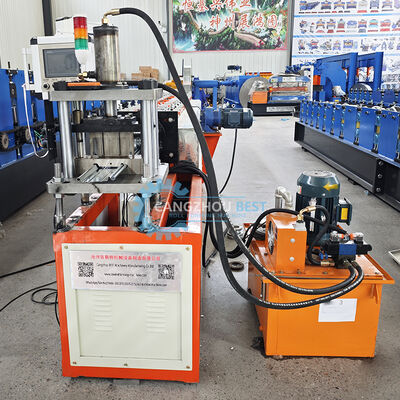

Galvanized Steel Roller Shutter Door Profile Forming Machine

Galvanized Steel Roller Shutter Door Profile Forming Machine
Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine Galvanized Steel Roller Shutter Door Profile Forming Machine

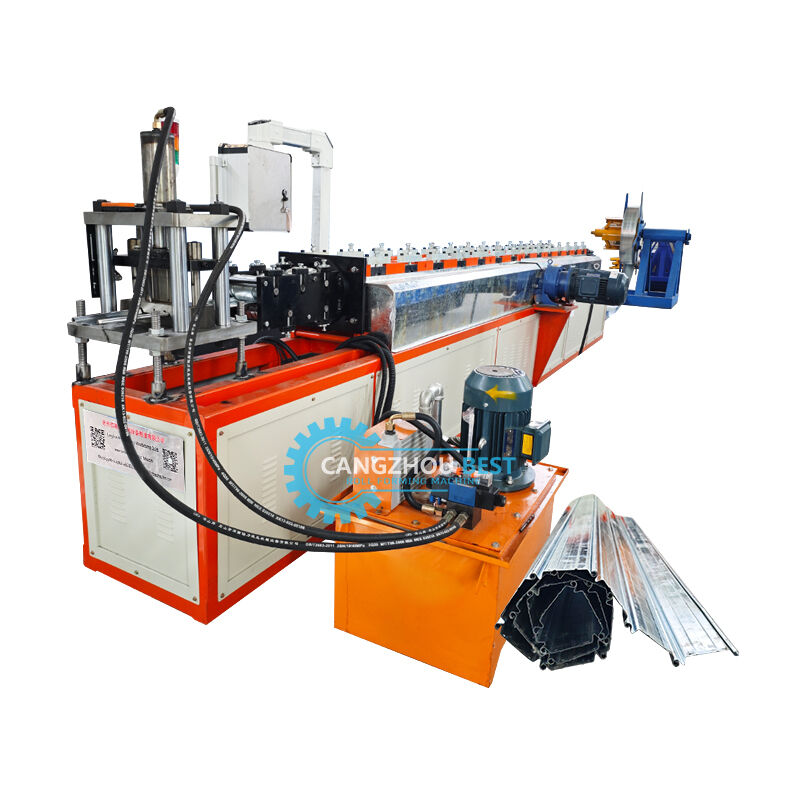

Großes Bild :  Galvanized Steel Roller Shutter Door Profile Forming Machine

Produktdetails:
Herkunftsort: China Hebei
Markenname: CHBEST
Zertifizierung: CE/BV/SGS
Modellnummer: XY77
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Verpackung Informationen: Plastikfilm für nackte Maschine
Lieferzeit: 20-30 Tage
Versorgungsmaterial-Fähigkeit: 20 Sätze/Monat

Galvanized Steel Roller Shutter Door Profile Forming Machine

Beschreibung
Produktname: Profilformmaschine für Rolltore aus verzinktem Stahl Maschinengeschwindigkeit: 8-12 m/min
Angetriebenes System: Kette oder Getriebe Kontrollsystem: SPS
Schnittart: Hydraulisch Garantie: 2 Jahre
Hervorheben:

galvanized steel roller shutter machine

,

shutter door roll forming equipment

,

steel profile forming machine

Galvanized Steel Roller Shutter Door Profile Forming Machine

Roller Shutters are one of the most versatile door products available for access control to almost all sizes of opening and perfect for covering and securing doorways, windows and other apertures.

Our factory is specialize in designing, making and installing roller shutter door forming machine. Our machines are selled all over the world.

Working flow
Galvanized Steel Roller Shutter Door Profile Forming Machine 0
Machine components

No.NameQty
1.De-coiler1 Set
2.Roll Forming Machine1 Set
3.Hydraulic Cutting Device1 Set
4.PLC Control Box1 Set
5.Hydraulic Pump1 Set
6.Output table1 Set



Decoiler

TypeManual type(standard)Hydraulic type(option)

Width300mm500mm
CapacityFrom 3-5tonsFrom 5-15 tons
Inner diameterφ450-550mmφ450-550mm
Outer diameterφ1500mmφ1800mm


roll forming

ItemParameter detail
Processing MaterialGI and PPGI
Material thickness0.25-0.8mm
Machine frame360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate typePillar type(option)


Plate thickness:20mmPillar thickness:30mm
Painting:normal paintingpainting:Chroming
Forming stations10-22 stations(according to the profiles)
Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaftφ60-70mm high garde No.45 steel after treatment,
Machine spacersCNC lathing in high-precision
Machine bearingsChina Haerbin bearing or SKF international bearing(option)
Driving system1 inch chain or gear box(option)
Machine power3kw-5.5kw(according to the profiles)
Machine working speed8-12m/min or 10-30m/min(option)
Machine adjust typeAfter machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Cutting

Type

Mould cutting type

Blade materialCr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processingwire-electrode cutting, but the upper balde can not be straight. this is technology
WorkingHydraulic type


Stacker

Type

Manual

 Auto(option)

Length1.5m-2m6m or 12m


PLC

Main itemParameter detail
PLC

Delta(standard) or according to your request


InverterChina brand(standard) or according to your request
Touch screenMcgs(standard) or according to your request
EncoderChina brand(standard) or according to your request
Voltage/HZ/Phase380v/50-60hz/3phase


Hydraulic pump

Main ItemParameter detail
Motor

3kw China brand or according to your request

PumpChina brand or according to your request
Solenoid valveChina brand or according to your request
Cooling system

Cooling fan

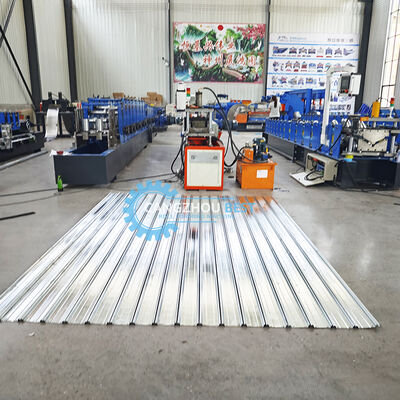

Galvanized Steel Roller Shutter Door Profile Forming Machine 1

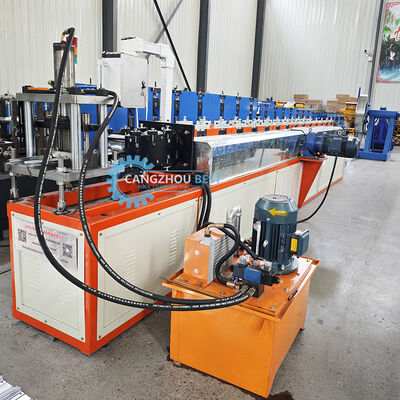

Galvanized Steel Roller Shutter Door Profile Forming Machine 2

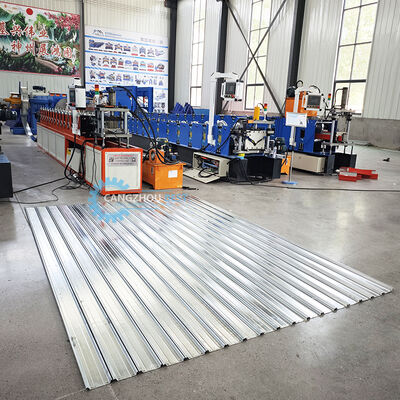

Galvanized Steel Roller Shutter Door Profile Forming Machine 3

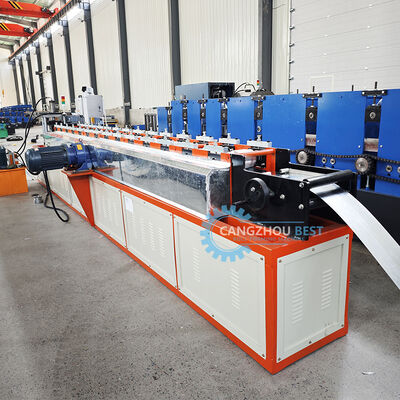

Galvanized Steel Roller Shutter Door Profile Forming Machine 4
FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
