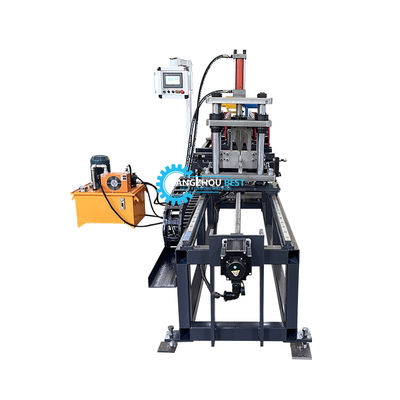

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine
Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine

Großes Bild :  Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine

Produktdetails:
Herkunftsort: China Hebei
Markenname: CHBEST
Zertifizierung: CE/BV/SGS
Modellnummer: Xy45
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set
Verpackung Informationen: Plastikfilm für nackte Maschine
Lieferzeit: 30-40 Tage
Versorgungsmaterial-Fähigkeit: 20 Sätze/Monat

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine

Beschreibung
Produktname: Verzinktes Stahlprofil SPS-Steuerelement Multisize U-Bolzen-Kaltrollenformmaschine Stanztyp: Hydraulik
Steuerungssystem: Plc Schnitttyp: Fliegen sah
Garantie: 2 Jahre Lebensdauer: 10 Jahre
Hervorheben:

galvanized steel U stud forming machine

,

PLC control cold roll forming machine

,

multi-size stud roll forming machine

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine



Machine Component

Roll forming machine 1 set
Hydraulic cutter 1 set
Electrical control system 1 set
Hydraulic system 1 set
Normal run out table 3 PC 1m*1m
Manual de-coiler 1 set Max. loading 5 T

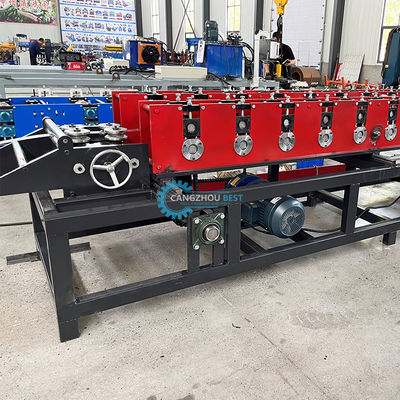

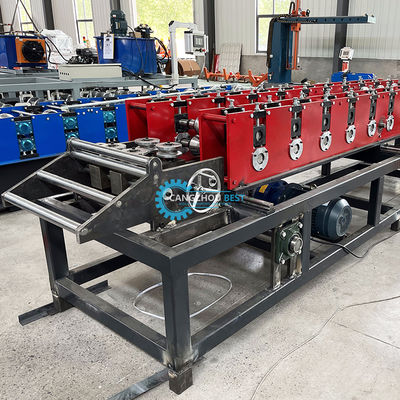

Roll forming machine



Description
Product Name Stud and Track Machine
Machine Size 5000mm*1200mm*1200mm
Machine Weight About 4 T
Frame Materials 350H steel
Forming Shaft Diameter 60mm
Material 45# quenched and tempered material
Forming roller 45# Forging Hard Chrome Plating
Cutting System Hydraulic Cutting
Main Engine power 3KW with cycloidal reducer
Forming Rows 12 rows
Forming Speed 8-12m/min
Pressing Thickness 1mm
Effective Width 50mm
Pressing width 300mm
Electric Control System SIEMENS/ Schneider
Pump Station Motor 3 KW
Transducer SIEMENS
Coder Wuxi "rip" or "Xin Ya"
Switch

" CHINT "or" delixi"





Hydraulic Cutting

1) Adopts post cutting, Stop to cut;

2) The cutting blade material is Cr12 with quenched treatment.

3) Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5) The power of cutting is provided by hydraulic station.

6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.



Hydraulic station



1) It supplies the power for the hydraulic cutter.

2) All hydraulic accessories are all use Chinese famous brand products.

4) Hydraulic motor power: 3KW



PLC Control System



1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Text screen is input and cancelled the working data.

4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

5) Encoder count, having function of count and measuring length.

6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)



Product Rack (un-powered)

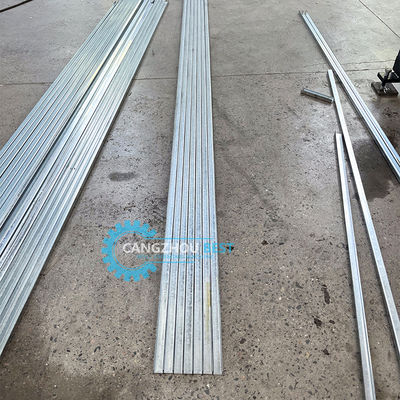

1) They are used to put the final product when product coming out from cutting device.

2) Two pieces, each piece length is 1m, total length is 3 meters.

3) Collect the final product and final products are convenient to be stacked by workers.

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine 0

Galvanized Steel Profile PLC Control Multi-Size U Stud Cold Roll Forming Machine 1
